Colour measurement and control for all industries, such as, Food, Plastics, Paint & Coatings, Cosmetics, Pharmaceuticals, Textiles, Graphic Arts, Construction, and Transportation. Whether your colour control involves incoming raw materials, in process production or outbound colour critical goods and materials,
SpectraMagic™NX makes it easy to inspect and control colour. Utilize pre-defined screen templates for Pass/Fail assessment, statistical process control, and sophisticated R&D analysis. Or, design your own screen layout based on your particular industry and/or application. Each graph type (colour, spectral, colour difference or trend), as well as the data list, can be scaled to the desired size with total ease. SpectraMagic™NX - lots of options to help you choose just what's right for you.

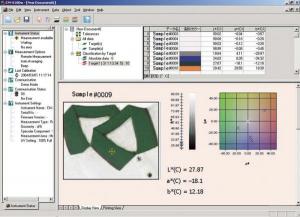

As a world first", SpectraMagic™NX allows you to insert digital pictures to your measurement data and mark the exact measuring spot, thus opening totally new dimensions to colour communication with customers and suppliers. The Data List View allows you to swiftly export measurement data into Excel using the copy and paste function. Any graph can be copied into a spreadsheet by "drag and drop" method. Reports can be customized to show color data in a format that meets end user requirements. Furthermore, SpectraMagic™NX can share data within a local area network (LAN) and operate under Windows 98, SE, NT4, 2000 Professional and XP Professional.
Another "world first" is the exclusive navigation function of SpectraMagic™NX, which combines a "step by step" online help for basic operations as well as freely customisable Macro function for repeated standard procedures on the production line. Using the widely known HTML coding, it allows total customisation of operations, illustrated with digital pictures and on screen instructions.
To improve general knowledge on colour basics and colour measurement technology, for beginners as well as experts, SpectraMagic™NX comes with a unique online tutorial from Konica Minolta's award winning booklet "Precise Color Communications", explaining important topics such as colour basics, chromatic systems, tolerance settings, standard illuminations and suitable measuring geometry's.
SpectraMagic™NX can be interfaced with all current Konica Minolta Chroma-Meters (CR-400 series) as well as all portable and bench-top
Spectrophotometer models, which makes Quality Control throughout your organisation more versatile by using the same platform.
SpectraMagic™NX can be interfaced with all current Konica Minolta Chroma-Meters (CR-400 series) as well as all portable and bench-top Spectrophotometer models, which makes Quality Control throughout your organisation more versatile by using the same platform.
Total freedom + flexibility that meets your QC needs

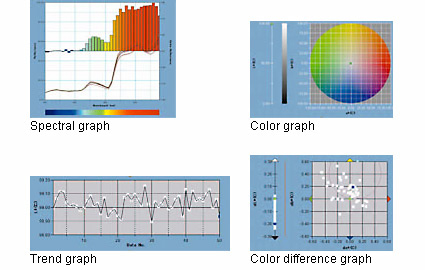

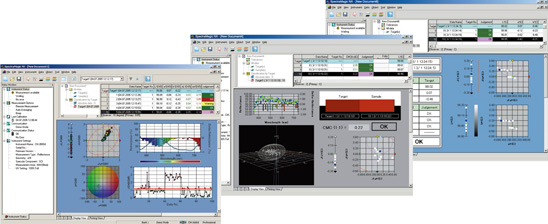

Requirements in screen layouts differ by application, from simple Pass/Fail assessment or statistic process control to detailed analysis for R&D work. SpectraMagic NX comes with several pre-defined templates to choose from, or you can create your own screen layout suiting your needs and application with total freedom and flexibility. Each graph type (Color, Spectral, 2D/3D, Color-Difference or Trend) as well as the data list can be scaled to the desired size with total ease.
Target data of one master target (primary target) can be associated with two or more working targets (regular secondary targets). This allows for sophisticated QC applications such as checking for color differences between the regular targets and master target simultaneously. Or, the color differences of an entire product can be managed in sections by comparing the differences from the target color of each section.

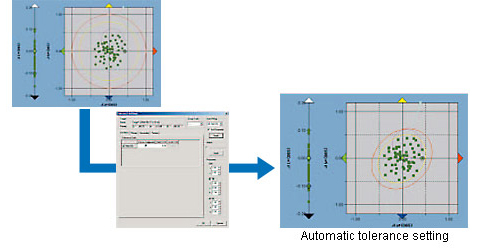

The minimum ellipse to enclose several samples can be calculated automatically and specified as tolerance. The automatic tolerance setting enables pass/fail judgment using three color difference equations, CMC(l:c), CIE 1994 and CIE DE2000, which provide results similar to visual evaluation and are being adopted increasingly by companies and organizations.
Information input for measurement data

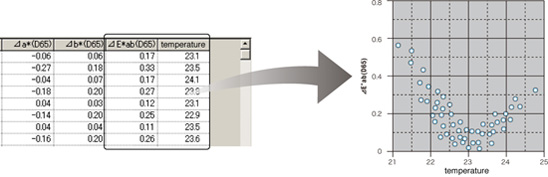

Additional information can be input*2 for measurement data, which is useful for organizing, sorting, or searching for data. These added items can also be displayed on a graph. Information such as Model name, item name, product No., code No., name, order No., color No., production lot No., customer name, product name, visual judgment result (pass/fail input), temperature, humidity, etc. can be input.
*2:
Additional items cannot be input by Lite Edition. Input items using Professional Edition can be also used on Lite Edition.
Various printing functions
Like the display view, you can create your own printing view format by placing and editing objects as desired. This function is useful for preparing easy-to-read reports or for filling in shipment slips. Moreover, several pieces of data can be combined and printed on one sheet.
Comprehensive graphs and color difference assessments
SpectraMagic NX helps you to make color quality control easy and comprehensive at once. You can choose from several graphs together with the latest Pass/Fail color difference assessments equations, such as CIE 1994 or CIE DE2000 and several industry related indices. Tolerances, both in box or elliptical form can be automatically calculated or manually adjusted to approved standards. Furthermore, SpectraMagic NX features a "User Index" function that allows you to configure up to 3 customized color equations to meet industry-specific requirements for color evaluation. Auto Target is an additional feature that makes QC with SpectraMagic NX so easy and fast.
ΔE00 (CIE DE2000) display
ΔE00 (CIE DE2000) is an improved color-difference equation based on the L*a*b* color space which provides better correlation between the color difference value and visual evaluation for subtle color differences.
Pre-configured templates for various applications
Templates designed for various applications are ready for immediate use.
Support for the CM-512m3 (multi-angle spectrophotometer)
The SpectraMagic NX also supports the CM-512m3 multi-angle spectrophotometer, which provides measurement values using three illumination angles with one measurement. The data of the three angles can be displayed simultaneously, and the angle characteristics specific to multi-angle spectrophotometer can be displayed visually with line graphs.
Status window shows Instrument Information at a glance
With SpectraMagic NX, all Instrument Information (status,
measurement options, last calibration, communication status and instrument settings) can be seen at a glance.

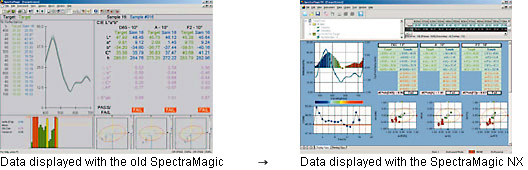

Data compatibility with the former SpectraMagic
The SpectraMagic NX is data-compatible with the former SpectraMagic software. The
old data can be used without any treatment.
Comprehensive reporting and easy data export
SpectraMagic NX allows you to insert digital pictures with the measured data, opening totally new dimensions to color communications with customers. The data list view allows you to swiftly export measurement data into Excel by copy and paste function. Reports as well can be created by the user with total freedom to meet traceable evidence of color consistency demanded by customers. Furthermore, SpectraMagic NX can share data within a local area network (LAN) and operates under Windows® 2000 Professional and XP Professional.
Automated operation by macro function

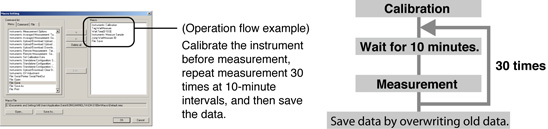

You can easily register routine operation flows as macros using the menu screen*3 to automate the operation processes. This is effective for reducing working time as well as preventing operation mistakes.
*3:
Macros cannot be registered by Lite Edition. Macros created using Professional Edition can be also run on Lite Edition.
Navigation function & Color tutorial for total workflow control

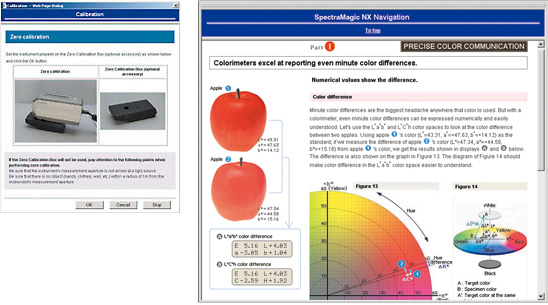

With the exclusive Navigation function, you have total control of the flow of operations with
online step-by-step instructions including picture illustrations. This unique feature can be
customized by the user according to his needs. The Navigation window of SpectraMagic
NX also includes a link to the HTML version of "Precise Color Communication" with many
illustrations and explanations that contribute to a clearer understanding of basics and
technical terms related to color and color measurement technology.
주요사양
System Requirements
OS
Windows® 2000 Professional with Service Pack 4,
Windows® XP Professional with Service Pack 2 (English, Japanese, German,
French, Spanish, Italian, Traditional Chinese, Simplified Chinese and Hangul versions),
Windows® XP Professional x64 Edition (English and Japanese versions),
Windows® Vista Business 32bit(x86) and 64bit(x64)
CPU
Pentium® III 600 MHz or higher (recommended)
Memory
128 MB (256 MB recommended)
Hard disk
450 MB of available disk space (At least 400 MB of available space is required in the system drive.)
Display
Display unit capable showing at least 1024 × 768 dots/256 colors
Other
CD-ROM drive (required for installation), One free USB port or printer port (for protection key),One free serial port (for instrument), Internet Explorer Ver. 5.01 or later
Compatible Instruments
CM-3700d; CM-3600d; CM-3610d; CM-3630; CM-3500d; CM-700d/600d; CM-2600d/2500d/2500c; CM-2002; CM-500 Series; CM-512m3; CR-400/410, DP-400; CR-300/CR-200 Series (The CR-300/200 Series can be used only when the main unit is version 3.0 or later and is connected via RS-232C. The unit cannot be used together with a USB converter.)
Features
Underlined: Professional Edition ONLY
Color space
L*a*b*, L*C*h, XYZ, Hunter Lab, Yxy, L*u'v', L*u*v*, Lab99, LCh99, Munsell, and their color differences(excluding Munsell)
Index
MI, WI (CIE 1982, ASTM E313-73, ASTM E313-96, Hunter, Berger, Taube, Stensby, Ganz), Tint (CIE 1982, ASTM E313-96, Ganz), YI (ASTM D1925-70, ASTM E313-73, ASTM E313-96, DIN6167), WB (ASTM E313-73), Standard depth (ISO 105.A06), Brightness (TAPPI, ISO2470), Opacity (ISO 2471, TAPPI T425 89% White plate)
, Haze (ASTM D1003-97)*, Density (Status A, Status T), Dominant Wavelength, Excitation Purity, RXRYRZ, 8 degree gloss value (CM-3600d, CM-3610d, CM-2600d/2500d only), user equation, each difference, 555, Ns, Ns Grade, Staining degree (ISO 105.A04E), Staining degree rating (ISO 105.A04E), Grey scale (ISO 105.A05), Strength, Pseudo strength, K/S strength (Apparent ΔE*ab,ΔL*,ΔC*,ΔH*,Δa*,b* , maximum absorption, total wavelength, user wavelength) NC#, NC Grade
*With some instrument types, the illuminating/light-receiving optical system may not satisfy the definition of haze ASTM D1003-97). However, this presents no problem as long as the value is used as a relative value.
Color difference equation
ΔE*ab (CIE 1976), ΔE*94 (CIE 1994) and each component of lightness, saturation and hue, ΔE00 (CIE DE2000) and each component of lightness, saturation and hue, ΔE99 (DIN99), ΔE (Hunter), CMC (I:c) and each component of lightness, saturation and hue, FMC-2, NBS 100, NBS 200, ΔEc (degree)(DIN 6175-2), ΔEp (degree)(DIN 6175-2)
Spectral reflectance (transmittance) and its difference, K/S and its difference, Absorbance and its difference, L*a*b* absolute value, L*a*b (2D/3D color difference distribution, MI), xy chromaticity diagram, Trend chart and histogram of each color space and color difference equation
Image display
Link between measured value and image data (JPEG or BMP format), Insertion of custom images
Instrument control
Measurement/calibrationAutomatic average measurement: 1 to 999 measurementsManual average measurement: Any number of measurements (Standard deviation and average value are displayed in the color space selected during measurement.)Remote measurement (Excluding the CM-3000 Series)
Instrument setting
Upload of data stored in the instrument (Excluding the CM-3000 Series)List view of data stored in the instrument (Excluding the CM-3000 Series)
Target
Registration of several target colors (Automatic target color selection), Manual input and registration of colorimetric data by specifying color space, Target data download to the instrument (Excluding the CM-3000 Series)
Data list
List view and editing of target/measured data (delete, sort, averaging, copy & paste), Link between JPEG images, Display of statistic value and pass/fail ratio, Visual judgment result input function, Additional data information inputting/listing function
External I/O
Loading/saving data files in original format (Extension: mes) (Several files can be loaded.)Loading/saving template files in original format (Extension: mtp) (Several files can be loaded.)Saving of data in text format (CSV, TXT), saving of data in XML format, Copy of listed data in the clipboard
